ALESEUSE CNC TOS WHN 13.8 CNC

Year of manufacture: 1979

Year of overhaul: 2004/2012

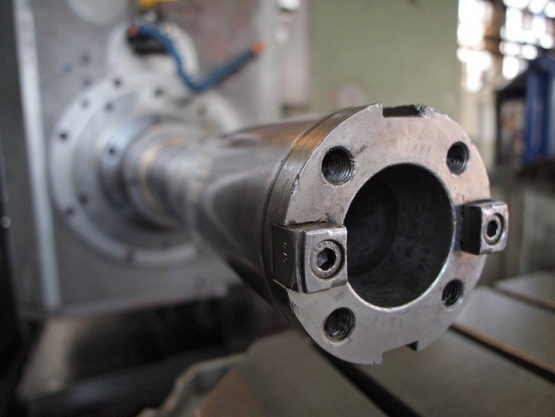

Diameter of working spindle … 130 mm

Cross adjustment of table (X) … 3500 mm

Motion of work head on frame (Y) … 2000 mm

Longitudinal adjustment of pedestal (Z) … 1250 mm

Slip out of working spindle (W) … 800 mm

Taper in spindle … ISO 50

Spindle speed … 850 rpm

Clamping area of table … 1800×1600 mm

Max. weight of workpiece … 12000 kg

Main motor output … 37 kW

Dimensions l x w x h … 7200x7800x4900 mm

Machine weight … 36000 kg

Heidenhain iTNC 530 – installed in 2004


PRIX : Kontaktieren sie uns
