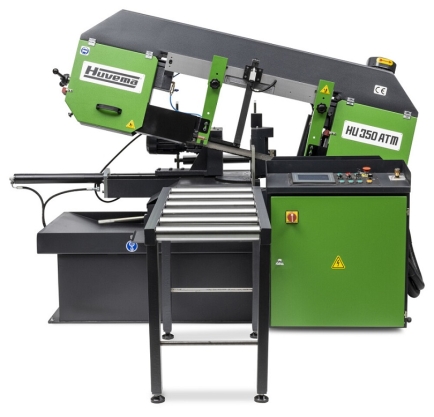

BANDSAW MACHINE HUWEMA-BEKAMAK HU 350 ATM – fully automatic – 350 x 350 mm – 90°

Bandsaw machine
Marque : Huvema-Bekamak
Modèle : HU 350 ATM
N° Stock : 16497
Machine neuve

This fully automatic band saw machine is suitable for cutting solid materials such as rolls and blocks, steel pipes and profiles, profiles, cast iron, and non-ferrous metals.
With this machine, you can quickly and easily cut workpieces up to lengths of 350 mm.
The machine is suitable for industrial use. From single pieces to larger series, the HU 350 ATM handles it all with ease!
The machine is easy to use, affordably priced, and perfect for a workshop with larger sawing tasks for medium-sized pieces, construction work, production, etc.
Includes :

  • Hydraulic clamping

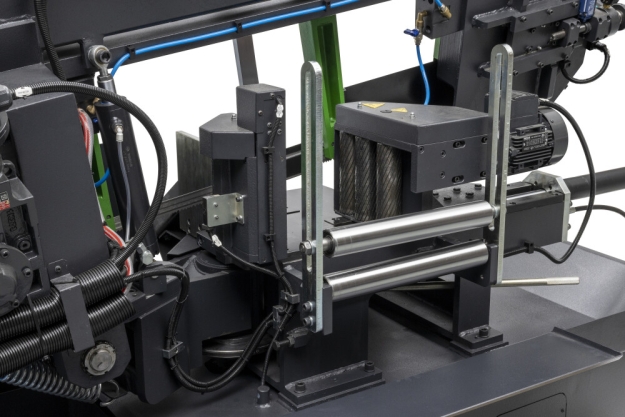

  • Material feed via rollers for automatic sawing function

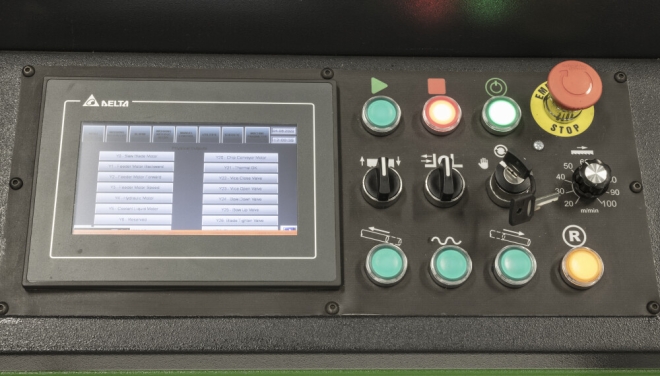

  • Control panel with touchscreen
  • Cooling system
  • Adjustable height switch with material recognition
  • Saw blade included
  • Steel brush for chips
  • Mechanical saw blade tension with manometer
  • Foot control with emergency stop
  • Variable speed
  • 1.2 m roller conveyor

Features:

  • Suitable for production sawing
  • Industrial quality
  • EU manufactured
  • Fully automatic with material feed
  • One program with 10 sawing steps
  • Infinite number of cuts per sawing step
  • Also usable manually or semi-automatically
  • Adjustable feed speed
  • One-sided miter possible by rotating the saw arm
  • Saw arm cast in one piece for stability
  • 34 mm saw blade height
  • Gear-driven
  • According to CE standards
Engine power : 2,2 kW
Voltage : 400 V
Weight : 1050 kg
Sawing capacity 90° square : 350 x 350 mm
Saw speed : 20-100 m/min
Sawing capacity 45° rectangular : 290 x 300 mm
Saw blade dimensions : 4160 x 34 x 1,1 mm
Sawing capacity 90° round : 350 mm
Working height : 760 mm
Sawing capacity 45° round : 320 mm
Sawing capacity 30° round : 320 mm
Sawing capacity 30° square : 350 mm
Coolant pump : 0,12 kW
Sawing capacity 30° rectangular : 400 x 350 mm
Sawing capacity 90° rectangular : 400 x 350 mm
Sawing capacity 45° square : 290 x 290 mm
Hydraulic engine : 0,37 kW
Machine dimensions : 2450 x 920 x 2020 mm
Price HT : on request*
*1 machine available on stock


PRIX : Contactez-nous
