VENDUE

FOREUSE CNC
MARQUE : IXION
MODELE : TL 1004
The machine has four numerically controlled axes.
The machine provides a complete treatment in respect of : deep drilling, centering, drilling, reaming, chamfering, threading and milling.
Drilling range: 6-32 mm
Max. drilling depth in one pass: 1000 mm
Threading max.M 20
Spindle taper: ISO 40
Spindle Speeds: 10 – 4000 rev / min
Main drive AC type: 3,0 / 5,5 kW
X-axis travel (cross-table): 1000 mm
Travel Y-axis (vertical): 400 mm
Drilling unit – W-axis 1100 mm
Z-axis travel (quill): 1000 mm
Dimensions of working table: 1200×700 mm
Max. centric table load: 3000 kg
Quick roll-out in X, Y, W, Z 10 m / min

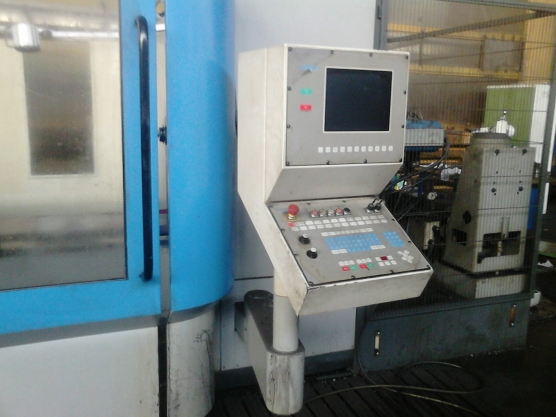

Control: IXION Mitsubishi M 530 MH
Power supply: three-phase, 400V, 50Hz
Power: 35 kVA
Overall dimensions: 3900x6600x2300 mm

Year 1995
Additional Equipment :
Increased drilling depth up to 1000 mm in one pass
manual rotary table 700 x 500mm, max load. 1000kg
CNC rotary table (only Siemens Sinumerik 840D)
Siemens Sinumerik 840D control-
spindle holder HSK-A 63
purging of the spindle
follow rest
cooling device 100bar
oil cooler (at ambient temperature area. 35st.C)
additional transmission chip
drainage of the coolant
trolley chip
collector chips
tool changer (not gun drills)
mounting kit detail
roofing equipment
oil bath
Cooling the electrical cabinet
notification system for fire
PRIX HT : sur demande*
* machine disponible sauf vente entre-temps
