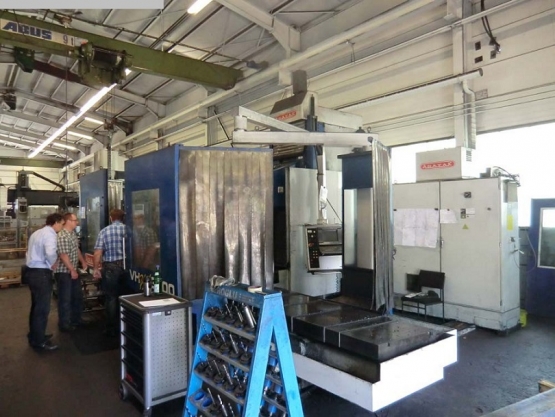

FRAISEUSE ALESEUSE
MARQUE : ANAYAK
MODELE : VH 3000 +
ANNEE : 2005
x-travel 3000 mm
y-travel 1500 (quer/cross) mm
z-travel 1300 mm

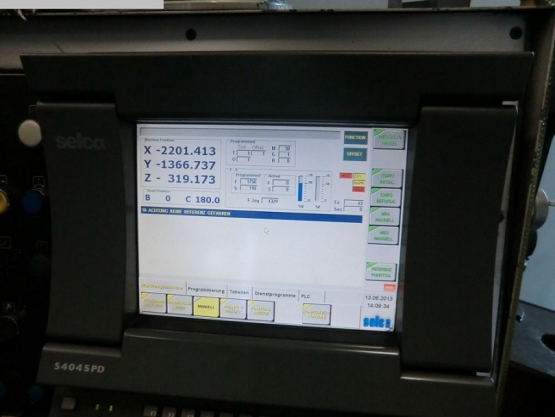

control Selca 4045 PD
table surface area 3200 x 1100 mm
spindle turning speed range 5000 U/min
spindle drive 30 (Siemens Digital) kW
tool taper 50 SK
feeds 10000 mm/min
rapid travel x/y/z 23500 mm/min
Torque 1500 Nm
total power requirement 50 kVA
weight of the machine ca. 27,5 t
dimensions of the machine ca. m

Machine including the following special features:
Option 1:

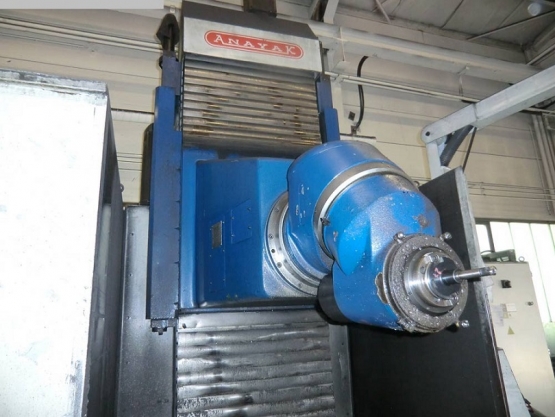

Automatic milling head with 5000 rpm.
B-axis each 1 deg (-180 deg +177 deg) with separate drive indexing
C-axis every 2.5 deg indexing (Vertical – Horizontal)
Oil mist lubrication system for the spindle bearings with separate return lubricant tank
Option 2:
Automatic reduction gear
Reduction 1:4 – constant power delivery of 250 Nm at 1500 rpm.
Siemens motor 30 kW
Option 3:
Cooling unit for reduction gear with oil circulation cooling
Option 4:
Heat compensation for the milling head
Option 5:
Tapping without compensating chuck
Option 6:
Chip conveyor at the table back, eject left / transverse,
Discharge height 1000 mm, manually selectable with emergency stop button
Work light Waldmann (halogen spotlight)
Operation for the front and back.
Pedal for tool clamping power 1500 kg
Panel with two front doors and a rear sliding door, all secured with
Microswitch and a height of 2400 mm.
All three axes are taken with IKO roller guides. This allows for the optional
Machine acceleration of 2.5 m / s can be achieved.
Table size 3200 x 1100 mm
Number of T-slots 7
Central T-slot 22 mm H7
Remaining T-slots 22 mm H12
Distance between T-slots: 150 mm
Table height 800 mm
Power feed motors X / Y / Z
Siemens 42 Nm at 2000 rpm. – 17900 N 1:2 gear
New price of the machine in 2005 : 395.000 euros
First machine installation end of 2005
Price : on request on www.westmachinesoutils.fr
