Fraiseuse conventionnelle
Marque : HELLER FOLLOW
Modèle : FU1120
Machine neuve
Working surface mm 1120 x 260
Number of T-slots mm 3 x 14
Longitudinal travel (X) mm 600
Cross travel (Y) mm 270
Vertical travel (Z) mm 402
Feeds longitudinal / cross mm/min 720
Longitudinal feed range of table mm/min 8(24-720)
Cross feed range of table mm/min 0-720
Vertical feed powered
Min. / Máx. distance between headstock and table 0-440
Máx load over table kg 275
Spindle speed range rpm 35 to 1600
Spindle taper ISO 40
Motor spindle power kW 2,2
Overall dimensions mm 1650 x 1600 x 2000
Weight kg 1360

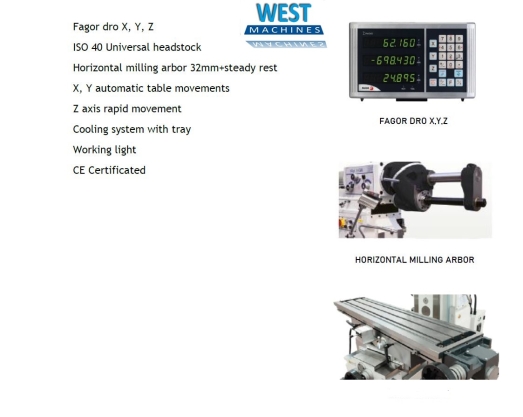

Equipement standard :
X, Y, Z FAGOR visualisation
 Universal Headstock
 Shaft Holder Ø 32 mm
 Holding Arbor for Cutting Head
 Automatic X, Y Axis Table Movement
 Z axis Rapid Movement
 Manual Vise With Swivel Base
 Coolant System with Collect Tray
 Work Light
 CE Certificate
Prix HT (départ) : sur demande*
* 1 machine en stock disponible sauf vente
