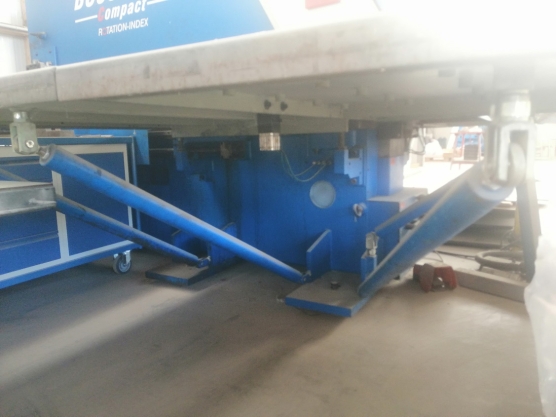

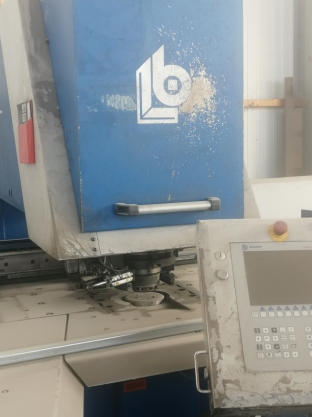

POINCONNEUSE CNC
Marque : BOSCHERT
Modèle : Compact 1000 Rotation.
Année : 2007

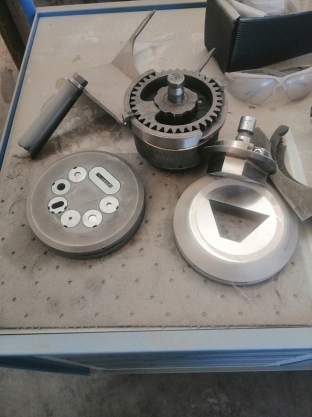

including tools
very good technical condition
less used only
was used for 1-3 mm thick AL sheets
space requirement 4×4 m
under power
working range without clamp reduction: 1000×2000 mm
pressing force: 280 kN /28 tons
recommended max sheet thickness: 4 mm
maximum path in the X axis with relocation: 9999 mm
maximum diameter of the punched hole
1 stroke: 105 mm
nibbling frequency: 500
maximum positioning speed parallel to the X axis: 60 m/min
maximum positioning speed parallel to the Y axis: 30 m/min
maximum positioning speed of the X and Y axes in parallel mode: 67 m/min
machine tolerance according to VDI 3441: +/- 0,1 mm
tool change time
manual: ca 15 sec
max. number of tools with RevoTool: 8 pcs
tool change time in RevoTool: ca 3 sec
max workpiece weight: 150 kg
main circuit breaker
slow: 32 A (50 A)
installed connector of the whole device: 20 kVA (25 kVA)
equipment dimensions
format 1000×2000: 4900x3210x2020 mm
device weight
format 1000×2000: 9300 kg
