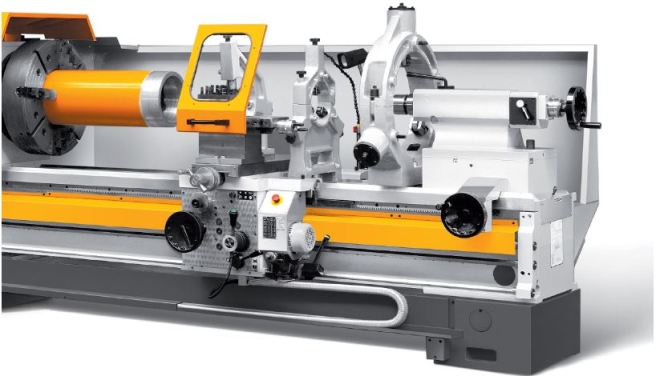

TOUR PETROLIER ZMM C10T.10 & C10T.12 – BROCHE MAXI 315 MM


TOUR PETROLIER
Marque : ZMM

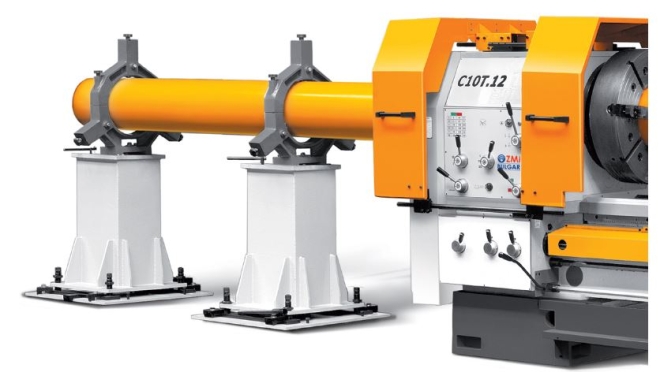

Modèle : C10T.10 & C10T.12

Capacity
Height of centers mm 400
Swing over bed mm 800
Swing over cross slide mm 560
Swing in gap mm 990
Width of bed mm 560
Distance between centers mm 1500; 2000; 3000; 4000; 5000; 6000

Spindle
Spindle nose DIN 55027 No. A20 – A2.20
Spindle bore mm 260 315
Spindle taper Metric 318

Head stock
Number of spindle speeds 12
Spindle speed ranges rpm 8 – 400 (10 – 480)
Main motor power kW 11 (15)

Feeds
Number of feeds 152
Longitudinal feed range mm/rev 0,039 – 15
Cross feed range mm/rev 0,02 – 7,5

Threads
Number of threads 76
Metric thread range mm 0,5 – 150
Inch thread range Tpi 60 – 1/5
Module thread range Module 0,125 – 37,5
DP thread range DP 410

Carriage
Cross slide travel mm 410
Top slide travel mm 150

Tail stock
Quill diameter mm 105
Quill taper Morse No.6
Quill travel mm 225

Weight
Weight kg 6000 6100




PRIX : Contactez-nous
